Description

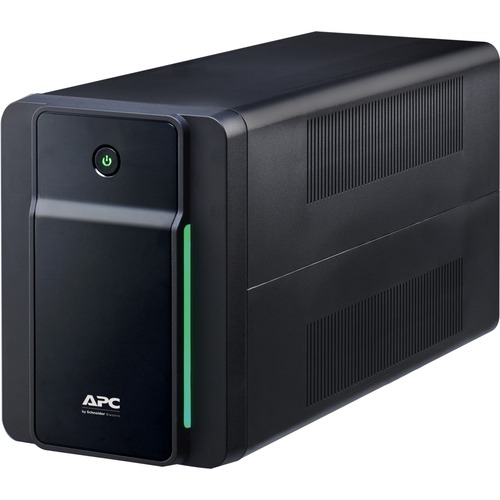

APC by Schneider Electric Back-UPS Line-interactive UPS - 1.20 kVA/650 W - AVR - 8 Hour Recharge - 48 Second Stand-by - 230 V AC Input - 230 V AC Output
Specifications :
Controls/Indicators
|
Status Indicators |
LED Status display with on line : on battery |
Miscellaneous
|
Package Contents |
|
Warranty
|
Limited Warranty |
2 Year |
Management
|
Alarm |
Low Battery |
|
On Battery |
Battery Information
|
Battery Chemistry |
Lead Acid |
|
Backup/Run Time (Half Load) |
6.30 Minute |
|
Backup/Run Time (Full Load) |
48 Second |
|
Typical Battery Recharge Time |
8 Hour |
Environmental Conditions
|
Maximum Operating Temperature |
40°C |
|
Maximum Operating Elevation |
914.40 m |
|
Maximum Storage Elevation |
914.40 m |
|
Storage Temperature |
-15°C - 40°C |
|
Sound Emission (A-Weighted) |
40 dB(A) |
Technical Information
|
Application/Usage |
Home |
|
Network Device |
|
|
Electronic Device |
|
|
Business |
|
|
Computer |
|
|
Gaming Console |
|
|
Dataline Protection |
RJ-45 |
|
Plug/Connector Type |
IEC 60320 C14 |
|
Receptacle Type |
AUS |
|
AVR |
Yes |
|
Transfer Time |
6 ms |
Physical Characteristics
|
Weight (Approximate) |
7.60 kg |
|
Height |
190 mm |
|
Width |
140 mm |
|
Depth |
390 mm |
|
Product Color |
Black |
General Information
|
Product Type |
Line-interactive UPS |
|
Manufacturer Part Number |
BX1200MI-AZ |
|
Manufacturer Website Address |
|
|
Manufacturer |
Schneider Electric SA |
|
Product Name |
Back-UPS 1200VA, 230V, AVR, Australian Sockets |
|
Product Line |
Back-UPS |
|
Brand Name |
APC by Schneider Electric |
Power Description
|
Input Voltage |
230 V AC |
|
Output Voltage |
230 V AC |
|
Load Capacity |
1.20 kVA/650 W |
|
Surge Energy Rating |
273 J |
|
Waveform Type |
Stepped Approximated Sine Wave |
|
Input Voltage Range |
140 V AC - 300 V AC |
|
Output Frequency |
60 Hz |
|
Input Frequency |
60 Hz |
