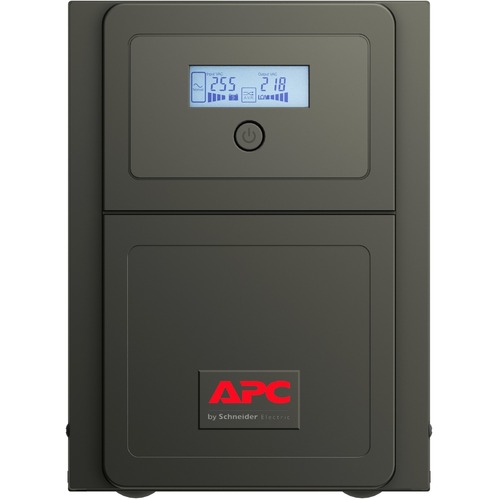

APC by Schneider Electric Easy UPS Line-interactive UPS - 1 kVA/700 W

APC
$510.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
SMV1000CAI
+ −

Description

APC by Schneider Electric Easy UPS Line-interactive UPS - 1 kVA/700 W - Tower - AVR - 4 Hour Recharge - 3.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Serial Port

UPS with the best value for money with backup battery & surge protection for electronics and computers

For our home and small office customers, Schneider Electric's APC offers a new category of UPSs designed for the essential power protection needs even in the most unstable power conditions, introducing APC Easy UPS. APC Easy UPS is a versatile UPS developed to handle inconsistent power conditions and at the same time guarantee the quality of millions of professionals around the world.

Features
  • Works adequately in situations where the supply is prone to sags and surges
  • Up to 3.60 minute runtime on full load to preserve critical data from power shortage interruptions

Specifications :

Controls/Indicators

Status Indicators

LCD Graphics Display:

    • Modes of operation
    • System parameters
    • Alarms

LED Indicators:

    • Unit power conditions
    • Utility power conditions

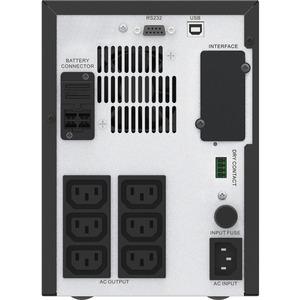

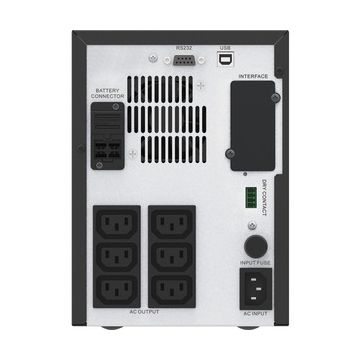

Interfaces/Ports

Serial Port

Yes

USB (HID Compliant) Port

Yes

Management

Alarm

On Battery

Low Battery

Overload

Environmental Conditions

Maximum Operating Temperature

40°C

Maximum Operating Elevation

3 km

Maximum Storage Elevation

3 km

Sound Emission (A-Weighted)

45 dB(A)

Physical Characteristics

Weight (Approximate)

13.60 kg

Form Factor

Tower

Height

220 mm

Width

160 mm

Depth

410 mm

Technical Information

Application/Usage

Electronic

Office

SOHO Office

Computer

Overload Protection

Yes

Plug/Connector Type

IEC 60320 C14

Receptacle Type

IEC 60320 C13

AVR

Yes

Transfer Time

2 ms

Receptacle Detail

6 x IEC 60320 C13

Power Description

Input Voltage

230 V AC

Output Voltage

230 V AC

Waveform Type

Sine Wave

Input Voltage Range

160 V AC - 295 V AC

Output Frequency

60 Hz

Input Frequency

65 Hz

Battery Information

Battery Chemistry

Lead Acid

Battery Capacity

7000 mAh

Number of Batteries

2

Backup/Run Time (Half Load)

12.10 Minute

Backup/Run Time (Full Load)

3.60 Minute

Battery Characteristics

Maintenance-free, Sealed, Leak-proof

Typical Battery Recharge Time

4 Hour

General Information

Product Type

Line-interactive UPS

Manufacturer Part Number

SMV1000CAI

Manufacturer Website Address

http://www.schneider-electric.com.au

Manufacturer

Schneider Electric SA

Product Name

Easy UPS 1kVA Tower UPS

Product Line

Easy UPS

Brand Name

APC by Schneider Electric
