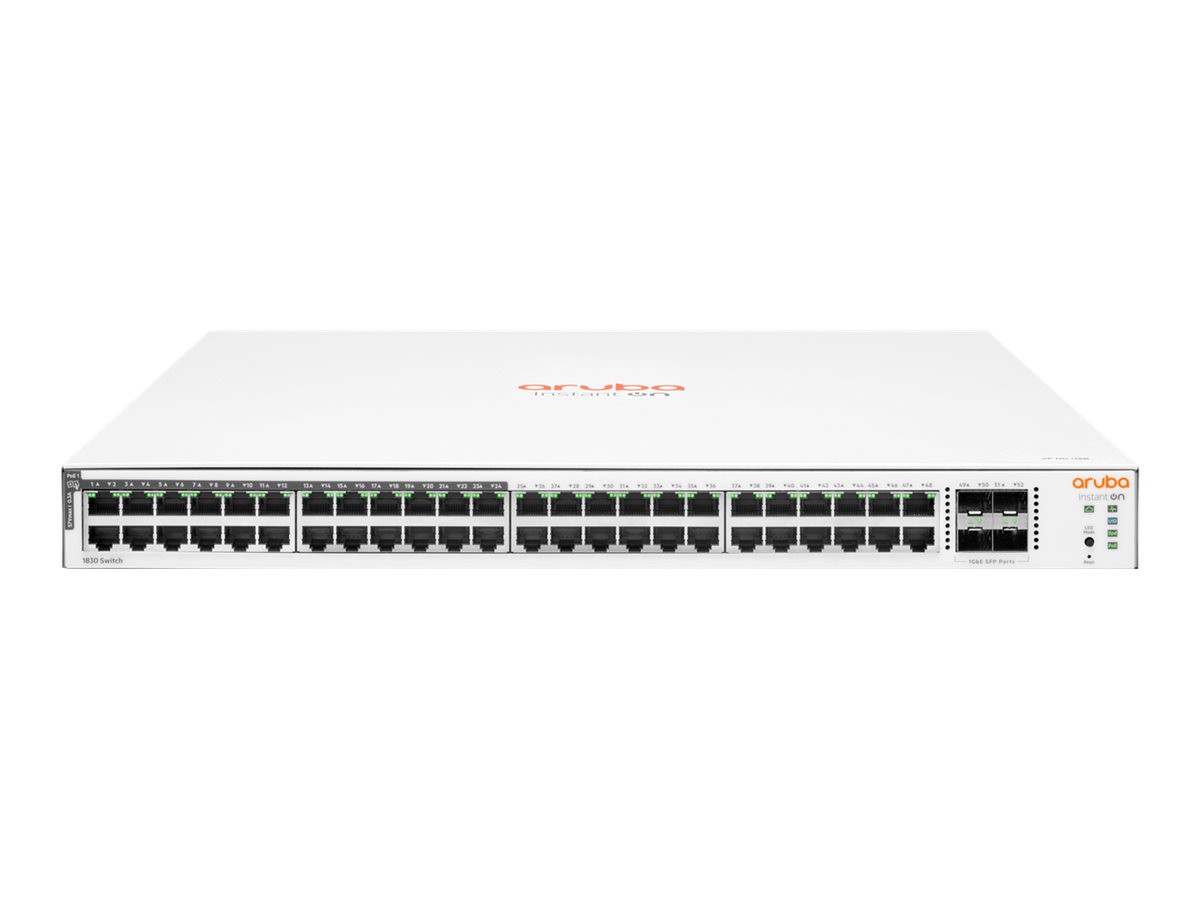

HPE ARUBA INSTANT ON 1830 48G (24P CLASS4 POE) 4SFP 370W SWITCH

Product Description

HPE Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch - switch - 48 ports - smart - rack-mountable

Device Type

Switch - 48 ports - smart

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Latency (100 Mbps): 5.2 ?s ? Latency (1 Gbps): 2.8 ?s ? Throughput: 77.37 Mpps ? Switching capacity: 104 Gbps

MAC Address Table Size

16000 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

IGMPv2, IGMP

Remote Management Protocol

SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP

Features

Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality of Service (QoS), Trusted Platform Module (TPM), Cable Diagnostics Function, LLDP support, DHCP client, Class of Service (CoS), cloud managed, 1.5MB packet buffer, Secure Copy (SCP), Link Aggregation, dual image support, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), BPDU Filter, loop protection, Global Storm Control, Port Scheduling

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Power

AC 100-240 V (50/60 Hz)

Dimensions (WxDxH)

44.3 cm x 35.1 cm x 4.39 cm

Weight

4.94 kg

Manufacturer Warranty

Limited lifetime warranty
