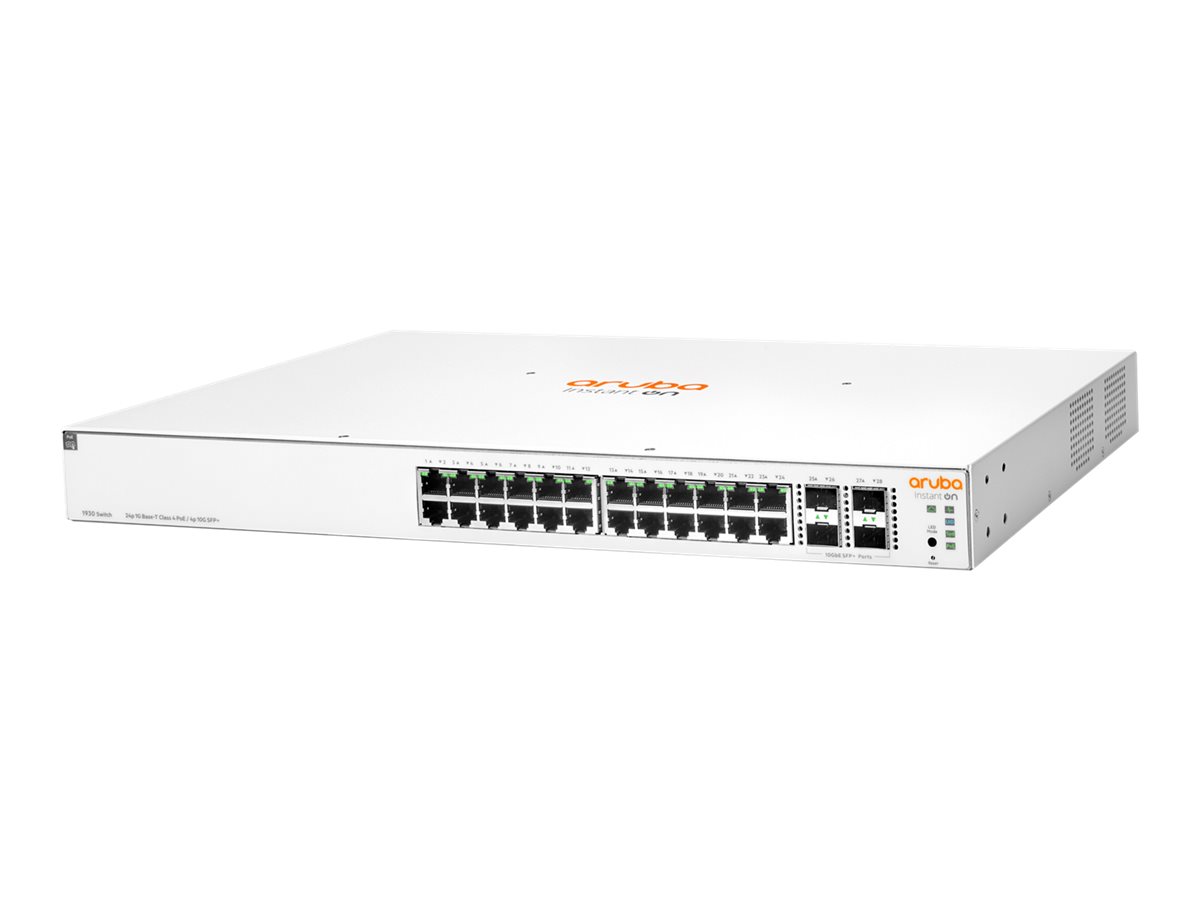

ARUBA INSTANT ON 1930 24G 4SFP+ POE+ 370W SWITCH

Product Description

HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch - switch - 28 ports - Managed - rack-mountable

Device Type

Switch - 28 ports - L3 - Managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE

PoE Budget

370 W

Performance

Switching capacity: 128 Gbps ? Throughput: 95.23 Mpps ? Latency (1 Gbps): 2.4 ?s ? Latency (10 Gbps): 1.3 ?s

Capacity

Link aggregation ports: 8 ? IPv4 routes (static): 32 ? VLANs supported: 256 ? Access Control Entries (ACEs) per ACL: 480 ? Packet buffer size: 1.5 MB

MAC Address Table Size

16000 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

Static IP routing

Remote Management Protocol

SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS

Features

Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af

Power

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

44.25 cm x 26.47 cm x 4.39 cm

Weight

3.67 kg

Manufacturer Warranty

Limited lifetime warranty
