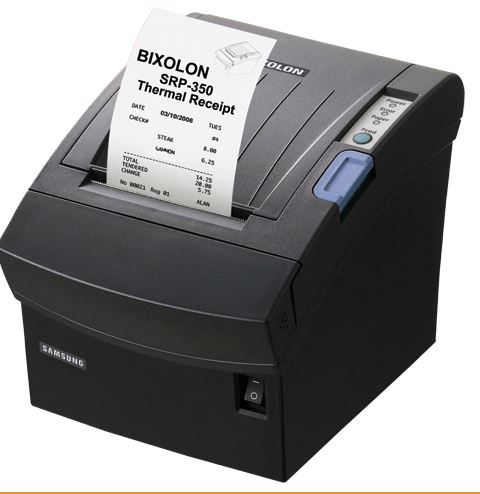

BIXOLON SRP350 Plus III USB Ethernet Bluetooth MFI Thermal Receipt Printer

BIXOLON SRP350 Plus III USB Ethernet Bluetooth MFI Thermal Printer

BIXOLON SRP-350IIIOBE Thermal POS Printer with USB, Ethernet and Bluetooth Interface, MFI certified. I/F Cables not included.

Features :

• Compact Thermal Receipt Printer
• 250 mm/Sec High Speed Printing
• Now standard with USB Interface
• Various interface cards available:
• RS-232C, IEEE Parallel or 10/100 Ethernet
• ESC/POS compatible
• Page mode printing
• Easy to use:
• - Drop in Paper loading
• - Eliminates Paper Jams
• 2D Barcode Printing:
• - PDF417
• - QR Code
• SRP-350III PSP (POS Software Package) Launcher Available
• - Intelligent Interface Auto-installer
• - Reverse Printing (Rotation)
• - Margin Crop
• - Text & Image Macro
• NV Memory for Bit map Data storage
• Full or Partial Cut
• Drivers available for Windows, OPOS, JPOS, Mac & Linux
• Available in Dark Grey & White (Special Order)

Specifications :

Printing Method : Line Thermal Dot Printing

Printing Width : 80mm Paper: 72mm
58mm Paper: 48mm

Dot Pitch : 180 dpi (7dots/mm)

Printing Speed (Max.) : 250 mm/Sec

Number of Columns :80 mm Paper:
Font A - 42 columns
Font B - 56 columns
Font C - 56 columns
Korean: 21 columns
Chinese: 21 columns

Character Size :Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Korean: 24 x 24
Chinese: 24 x 24

Character Table/Code Pages :Alphanumeric: 95
Expanded Graphics 128x37 page
International Character: 32

Bar-code Type : UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code

Line Spacing :

Paper feed method : Friction

Paper Type : Thermal Paper Roll

Paper Width : 80 ± 0.5mm or 58 ± 0.5mm

Paper Roll Diameter : Max Ø 83.0mm

Paper Thickness :

Paper Supply Method : Easy Paper Loading, Drop in and Print

Auto Cutter : Indicators/ControlsPower Light, Error Light, Paper Out Light
Buzzer

Emulation : ESC/POS

Print Buffer : 4 KBytes

NV Memory : 256 KBytes

Sensors : Paper End Sensor , Paper near end sensor, Rear Cover Open Sensor

Drawer Port : 1 port (opens 2 drawers, special cable is needed to open 2 drawers)

External Device Port : N/A

Interfaces : StandardUSB V2.0 on Board plus
RS232C or
Parallel (IEEE 1284 or
Ethernet

Driver available : Smart Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver

Software Utilities : Firmware/NV Image download
Utility Software Package

Power Supply : Input: AC100 ~240V DC 24V, 2.5A

Power Consumption : Max. 60W

External Dimensions (WxDxH) : 145 x 203 x 146 mm

Weight : Approx. 1.67 Kg

Operating Environment : 0-45°C
10-80% RH None condensing

Storage Environment : -10-55°C
10-80% RH None condensing

Reliability : Printer: 70 million Lines
Head: 150 Km
Auto Cutter: 1.8 Million cutsEMC/Safety StandardsUL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
