Description

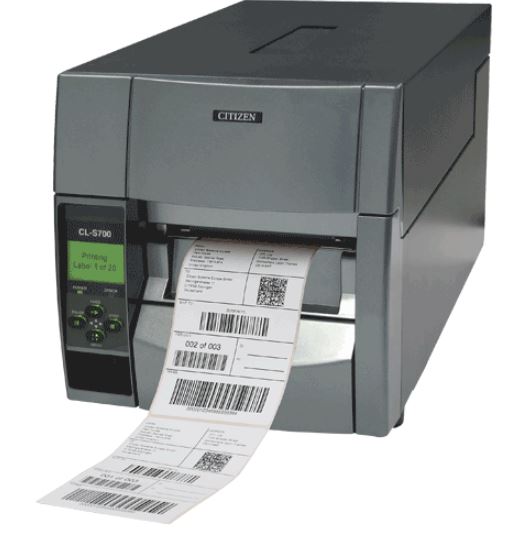

CITIZEN CL-S703II 300Dpi Industrial Thrml Trsf Label Ptr
Features :
- Easy ribbon loading: Hi-Lift™ metal mechanism opening to a full 90° to allow for easy ribbon access
- Heavy duty metal case for strength and durability
- Print Resolution CLS700II: 203 DPi, CLS703II: 300 DPi
- Ribbons up to 450 metres long either inside or outside wound with ARCP™ ribbon control
- Power switch is conveniently located at the front of the printer
- Large graphic LCD for clear indication of printer status and easy printer configuration
- Soft-close top cover for user safety and user courtesy
- Parallel, serial and USB interfaces standard; optional Ethernet and Wireless LAN
- Cross-Emulation™: Supports both Datamax® and Zebra® emulations and will sense the language being used and offer to switch emulations automatically
- Free-of-charge on CD with printer, including support for various platforms
- Media capacity: Internal 203mm (8-inch) media capacity
- CLP7xxIIR: Rewind model
Specifications :
| Feature | Details |
| Printing Method | Direct Thermal and Thermal Transfer |
| Printing Width | Max. 104 mm |
| Printing Length | Max. 253.9 mm |
| Dot Pitch | CLS700II/700IIR: 203 dpi, 8 dots/mm |
| CLS703II/703IIR: 300 dpi, 8 dots/mm | |
| Printing Speed (Max.) | CLS700II/700IIR: Up to 254 mm (10 inches) per second |
| CLS703II/703IIR: Up to 203 mm (8 inches) per second | |
| Font | Fixed Pitch Font, OCR Font, Proportional Font |
| Kanji Font | |
| Character Table/Code Pages | See User Manual |
| Bar-code Type | 1D Codes: Code39, Code93, Code128, ITF, Codabar, UPC-A/E, EAN-8/13, UPC and EAN 2 and 5-digit extensions, Plessey, Postnet, Interleaved 2 of 5 Case Code, UPC2DIG add, UPC5DIG add, Telepen, ITF14 & 16, Industrial 2 of 5, COOP 2 of 5, GS1*1 |
| 2D Codes: PDF-417, UPS Maxi Code, DATA Matrix, QR Code | |
| Paper Feed Method | Friction Feed |
| Media Type | Roll, fanfold (Continuous media, die-cuts, continuous tags, paper or ticket) |
| Media Width | Min. 25.4 mm Max. 118 mm |
| Label Width | Min. 7.62 mm Max. 118 mm |
| Paper Roll Diameter | Max Ø 203 mm with 38 to 76 mm Core |
| Media Thickness | Min. 0.0635 mm to Max. 0.254 mm |
| Auto Cutter | Optional Cutter |
| Indicators/Controls | Graphic LCD with 4 buttons |
| VuePrint™ Menu configuration system | |
| LED: Power, Error | |
| Buzzer: Alarms, errors etc | |
| Operating keys: Pause, Feed, Stop, Menu | |
| Power switch | |
| Emulation | Datamax® (DMX400™, Prodigy Plus™, I-Class™) and Zebra® ZPL2® on board Cross-emulation™. Printer will sense the language being used and offer to switch emulations automatically. |
| CBI™ BASIC Interpreter | |
| Eltron® EPL2® | |
| CPU | 32 Bit RISC CPU |
| Memory | SDRAM: 64MB total, 30 MB available for use |
| FLASH: 16MB total, 4.0MB available for use | |
| Sensors | Transparent sensor, Reflective sensor & Label peeling sensor (if optional Peeler is used) |
| Interfaces | Standard: USB 1.1 (Full speed), RS-232 (Baudrate from 2400-115200), Parallel (IEEE 1284) |
| Optional: Ethernet LAN or Wireless LAN | |
| Driver Available | Drivers by Seagull |
| Software Utilities | Bartender Ultralite |
| Power Supply | AC100 - 240V, 1.5 - 3.5A, 50/60Hz |
| Power Consumption | Max. 3.5A |
| External Dimensions (WxDxH) | CLS700II/703II: 255 × 490 × 265mm |
| CLS700IIR/703IIR: 255 × 490 × 385mm | |
| Weight | CLS700II/703II: 13.3Kg |
| CLS700IIR/703IIR: 17.6Kg | |
| Operating Environment | Temperature: 0 to 40 °C |
| Humidity: 30 to 80% (non-condensing) | |
| Storage Environment | Temperature: -20 to 60 °C |
| Humidity: 5 to 85% (non-condensing) | |
| EMC/Safety Standards | UL, C-UL, FCC: CLASS A, CE, C-Tick/RCM, CCC |
