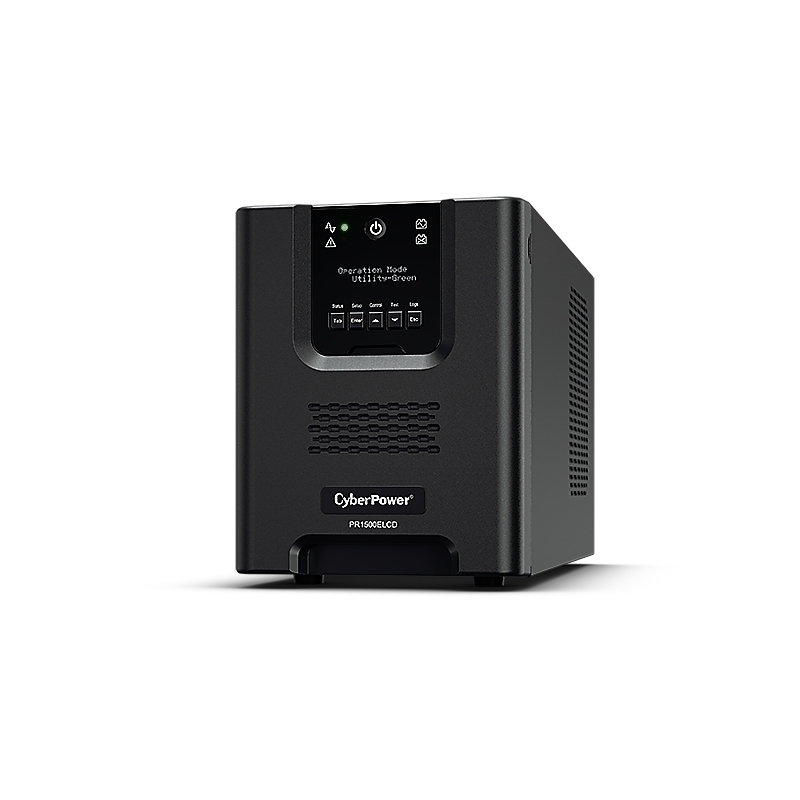

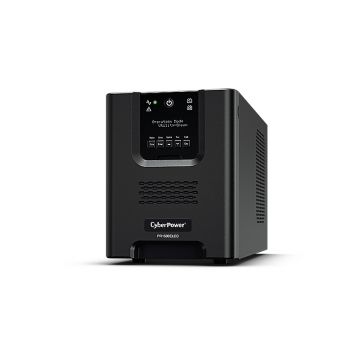

CyberPower PRO Tower - Smart App UPS System - 1500VA

$1,029.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
CPPR1500ELCD
+

Description

CyberPower PRO Tower - Smart App UPS System - 1500VA
CyberPower Systems PRO series 1500VA / 1350W Tower UPS with LCD - 2* 12V/17AH - 6x IEC - 3 Yrs Adv. Replacement WTY 2 Yrs on internal Batteries

Specifications:

  • Form Factor: Tower
  • UPS Topology: Line-interactive
  • Energy Saving Technology: GreenPower UPS Bypass Technology
  • Energy Star Qualified: Yes
  • Nominal Input Voltage ( Vac ): 230
  • Input Voltage Range ( Vac ): 151 - 301
  • Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
  • Input Frequency Detection: Auto-sensing
  • Rated Input Current ( A ): 10
  • Input Connector Type: IEC C14
  • Detachable Power Cord Plug Type: AU x 1 | IEC C14 x 1
  • Power Cord Length: 1.83m
  • Capacity (VA): 1500
  • Capacity (Watts): 1350
  • On Battery Waveform: Pure Sine Wave
  • On Battery Voltage(s) ( Vac ): 230 ± 5%
  • On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
  • Power Factor: 0.9
  • Automatic Voltage Regulation (AVR): Double Boost, Single Buck
  • Overload Protection: Internal Current Limiting

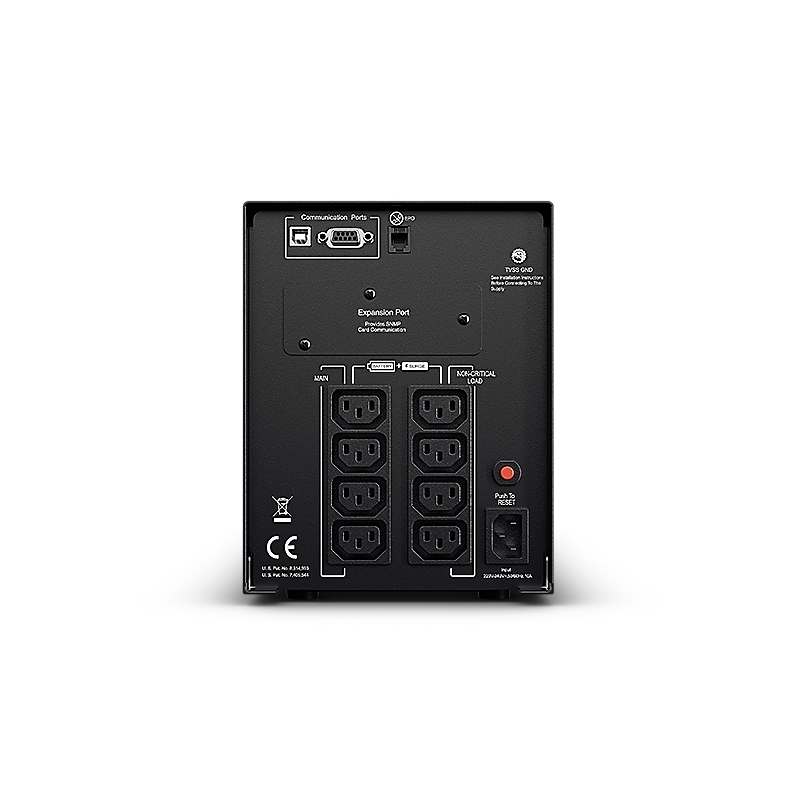

  • Outlet(s) - Total: 8
  • Outlet Type: IEC C13 x 8
  • Outlet(s) - Battery & Surge Protected: 8
  • Outlet(s) - Critical Load (CL): 4
  • Outlet(s) - Non-Critical Load (NCL): 4
  • Typical Transfer Time ( ms ): 4
  • Battery Runtime at Half Load ( min ): 17
  • Battery Runtime at Full Load ( min ): 4
  • Battery Typical Recharge Time ( Hours ): 8
  • Start On Battery: Yes
  • User-replaceable: Yes
  • Hot-swappable: Yes
  • Battery Type: Sealed Lead-acid
  • Battery Cartridge (RBP): RBP0023 x 1
  • Surge Suppression ( Joules ): 405
  • EMI/RFI Filtration: Yes
  • LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
  • LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log
  • LED Indicators: Power On, Line Mode, Battery Mode, UPS Fault, Replace Battery
  • HID Compliant USB Port(s): 1
  • Emergency Power Off (EPO) Port: Yes
  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
  • Management Cable ( pcs ): Power Cord x2 | USB Cable x1 | EPO Cable x1
  • Power Management Software: PowerPanel Business (Recommended)
  • SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
  • Enclosure Construction: Metal
  • Dimensions: 170 x 221 x 432mm
  • Weight: 25.1kg
  • Online Thermal Dissipation ( BTU/hr ): 113
  • Certifications: CE | EAC | RCM
  • RoHS: Yes
  • Product Warranty Period: 3 Years
  • Battery Warranty Period: 2 Years

Features:
  • Line-interactive UPS Topology
  • Active PFC Compatible
  • Automatic Voltage Regulation (AVR)
  • Critical/Non-critical Load Outlets
  • Surge and Spike Protection
  • LCD Status Display
  • USB Connectivity Port
  • PowerPanel Management Software
  • Tower Form Factor
  • Energy Saving Technology
  • Pure Sine Wave Output
  • Overload Protection
  • Hot-swappable Batteries
  • EMI and RFI Filtration

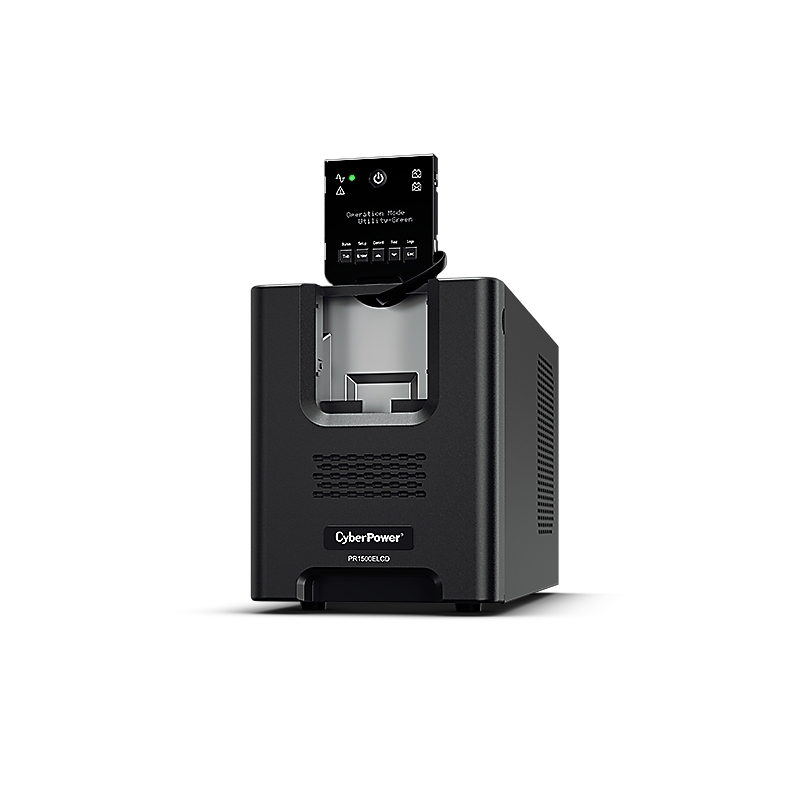

  • Detachable LCD Panel
  • Emergency Power Off (EPO) Port
  • SNMP/HTTP Remote Management Capability

Attachments

Brochure (CPPR1500ELCD-pdf.pdf, 2,197 Kb) [Download]
