Description

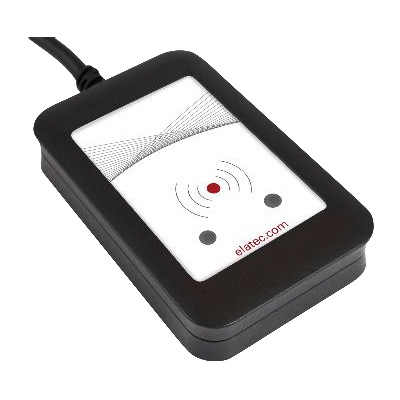

TWN4 MULTITECH 2
PROGRAMMABLE RFID READER/WRITER FOR LF/HF/NFC
Elatec’s TWN4 family of transponder readers and writers allows users to read and write to almost any 125 kHz, 134.2 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO14443A/B (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC). The TWN4 MultiTech 2 reader has integrated RFID (LF & HF) and NFC, which is supported by mobile phones with Android version 4.3 or greater. The app on the reader communicates with the NFC module with easy commands.
Special features:
PROGRAMMABLE RFID READER/WRITER FOR LF/HF/NFC
Elatec’s TWN4 family of transponder readers and writers allows users to read and write to almost any 125 kHz, 134.2 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO14443A/B (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC). The TWN4 MultiTech 2 reader has integrated RFID (LF & HF) and NFC, which is supported by mobile phones with Android version 4.3 or greater. The app on the reader communicates with the NFC module with easy commands.
Special features:
- - powerful SDK for writing apps which are executed directly on the reader
- - firmware update in the field possible
- - onboard 18 kB flash storage, e.g. for storing user accessible non-volatile data
- - direct chip-commands support
- - two onboard SAM sockets (Secure Access Module)
- - CCID and PC/SC 2.01
- - 4 GPIOs
- - supports quick centralized (re)configuration over network and over wireless interface with TWN4 CONFIG Card
- - 3D construction data (STEP) available on request
