Description

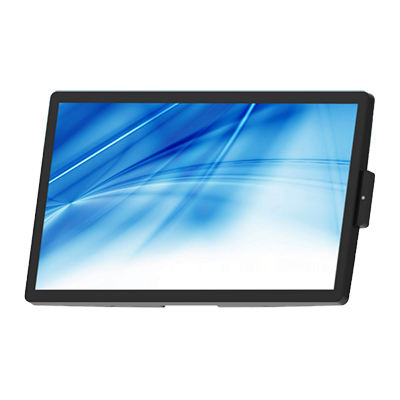

Element K22A Panel PC
Element K22A is a 21.5” Android Full Flat Touch Screen LCD with 7H hardness durable glass with 16.16mm Slim Bezel free design and 1920 x 1080 (FHD) resolution.
With a sleek slim design (37.9mm width) the fanless MT8390 CPU, noise-free Panel PC is capable of multi roles such as Kitchen Video System (KVS), Self-Check In and Self-Check Out, Self Service Terminals (Self Ordering), or act as Digital Signage Display / Information Display.
Element K22A Processor: MTK Solution Prefer MT8390 (i700) GPU: Arm Mali-G57 MC3 System Memory: 8GB DDR4 / LPDDR4 Storage Device: 64GB eMMC Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac/ax 2T2X + BT5.2 Touch LCD Display Size / Resolution: 21.5” TFT LCD / 1920 x 1080 Touch Screen: Projected Capacitive Touch, 10 Points Brightness (Touch Type): 250 nits (No Touch), 225 nits (P-CAP) Contrast Ratio: 1000:1 View Angle: H:178°, V:178° Display Surface: 7H Hardness durable glass I/O Port USB Port 3 x USB-C 3.0, 2 X USB 3.0 Type A, 3 x USB2.0 (peripheral connection Built in port, 5V@0.5A) LAN Port: 10/100/1000 Video Port: avaible for customiztion, (HDMI) Audio Port: avaible for customiztion SD Slot: 1 x Micro SD Slot (SDHC 2.0 suport) Speaker: 2 x 2W Housing Colour: Dark Gray VESA: 100 mm x 100 mm Power: 12V 90W External Power Adaptor or PoE (Power Over Ethernet) selectable OS: Android 13 with GMS (EDLA)
Element K22A is a 21.5” Android Full Flat Touch Screen LCD with 7H hardness durable glass with 16.16mm Slim Bezel free design and 1920 x 1080 (FHD) resolution.
With a sleek slim design (37.9mm width) the fanless MT8390 CPU, noise-free Panel PC is capable of multi roles such as Kitchen Video System (KVS), Self-Check In and Self-Check Out, Self Service Terminals (Self Ordering), or act as Digital Signage Display / Information Display.
Element K22A Processor: MTK Solution Prefer MT8390 (i700) GPU: Arm Mali-G57 MC3 System Memory: 8GB DDR4 / LPDDR4 Storage Device: 64GB eMMC Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac/ax 2T2X + BT5.2 Touch LCD Display Size / Resolution: 21.5” TFT LCD / 1920 x 1080 Touch Screen: Projected Capacitive Touch, 10 Points Brightness (Touch Type): 250 nits (No Touch), 225 nits (P-CAP) Contrast Ratio: 1000:1 View Angle: H:178°, V:178° Display Surface: 7H Hardness durable glass I/O Port USB Port 3 x USB-C 3.0, 2 X USB 3.0 Type A, 3 x USB2.0 (peripheral connection Built in port, 5V@0.5A) LAN Port: 10/100/1000 Video Port: avaible for customiztion, (HDMI) Audio Port: avaible for customiztion SD Slot: 1 x Micro SD Slot (SDHC 2.0 suport) Speaker: 2 x 2W Housing Colour: Dark Gray VESA: 100 mm x 100 mm Power: 12V 90W External Power Adaptor or PoE (Power Over Ethernet) selectable OS: Android 13 with GMS (EDLA)
