Description
Element K22W is a 21.5 inch Full Flat Touch Screen LCD with 7H hardness durable glass with 16.16mm Slim Bezel free design and 1920 x 1080 (FHD) resolution.
With a sleek slim design (37.9mm width) the fanless J1900 CPU, noise-free Panel PC is capable of multi roles such as Kitchen Video System (KVS), Self-Check In and Self-Check Out, Self Service Terminals (Self Ordering), or act as Digital Signage Display / Information Display.

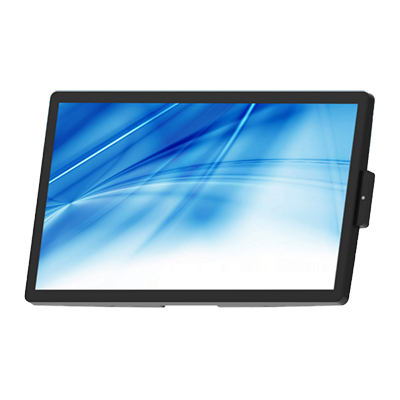

Element Touch Terminal K22W
- Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz)
- 8GB So-DIMM DDR3L 1333 MHz
- 128GB SSD
- 21.5 inch TFT LCD / 1920 x 1080 (225 nits)
- Projected Capacitive Touch, 10 Points
- 7H Hardness durable glass
Additional Specs
I/O Ports:
Serial Port: 2 x RS232 (RJ45 Type)
USB Port: 4 x USB 2.0 Type A
LAN Port: 1 x RJ45 Giga LAN
Video Port: 1 x VGA
Audio Port: 1 x Line-Out
Power Input: 1 x DC in 12V/5A 4 pin, 1 x DC out 12V/1A 2 pin
Speaker: 2 x 2W
Power Supply: 12V Min 60W External Power Adaptor
Windows 10 IoT Enterprise LTSB 2019 Entry 64BIT pre-installed
With a sleek slim design (37.9mm width) the fanless J1900 CPU, noise-free Panel PC is capable of multi roles such as Kitchen Video System (KVS), Self-Check In and Self-Check Out, Self Service Terminals (Self Ordering), or act as Digital Signage Display / Information Display.
Element Touch Terminal K22W
- Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz)
- 8GB So-DIMM DDR3L 1333 MHz
- 128GB SSD
- 21.5 inch TFT LCD / 1920 x 1080 (225 nits)
- Projected Capacitive Touch, 10 Points
- 7H Hardness durable glass
Additional Specs
I/O Ports:
Serial Port: 2 x RS232 (RJ45 Type)
USB Port: 4 x USB 2.0 Type A
LAN Port: 1 x RJ45 Giga LAN
Video Port: 1 x VGA
Audio Port: 1 x Line-Out
Power Input: 1 x DC in 12V/5A 4 pin, 1 x DC out 12V/1A 2 pin
Speaker: 2 x 2W
Power Supply: 12V Min 60W External Power Adaptor
Windows 10 IoT Enterprise LTSB 2019 Entry 64BIT pre-installed
