Description
ELO Touch Elo 2202L 54.6 cm (21.5") LCD Touchscreen Monitor - 16:9 - 14 ms - 558.80 mm Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colours - 3,000:1 - 250 cd/m², 225 cd/m² - LED Backlight - Speakers - HDMI - USB - VGA - Black - Speaker, USB Hub

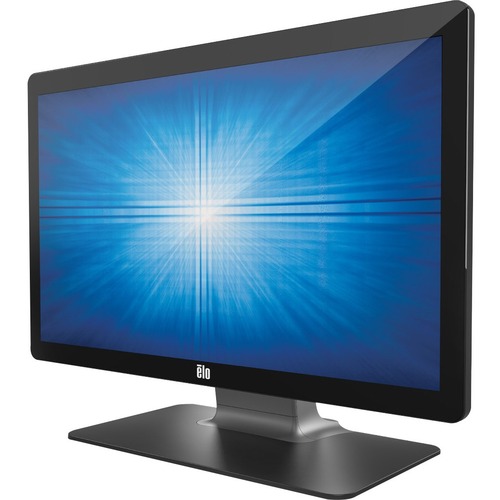

2202L Touchscreen Monitor
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Connect your Accessories
From a barcode scanner to an EMV, Elo's 02-Series Monitors are compatible with a large set of peripherals purpose-built for commercial applications.
Fingerprint Reader
The Biometric Fingerprint Reader can be attached to provide secure and quick login.
MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Barcode Scanner
Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.
NFC
The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.
Privacy Matters
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.
One for You. One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Privacy Matters
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.
One for You. One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Specifications :
Built-in Devices
Built-in Devices |
Speaker |
USB Hub |
Audio
Speakers |
Yes |
Number of Speakers |
2 |
Speaker Output Power |
4 W |
Interfaces/Ports
USB |
Yes |
HDMI |
Yes |
VGA |
Yes |
USB Standard |
USB 2.0 |
Miscellaneous
Certifications & Standards |
|
Environmentally Friendly |
Yes |
TAA Compliant |
No |
Mean Time Between Failures (MTBF) |
5.7 Year |
Touchscreen Information
Touchscreen Type |
TouchPro Projected Capacitive |
Touchscreen |
Yes |
Multi-touch Screen |
Yes |
Number of Simultaneous Touchpoints |
10 |
Technical Information
Aspect Ratio |
16:9 |
Response Time |
14 ms |
Features |
Cable Lock Slot |
On-screen Display (OSD) |
|
Mount Type |
Wall Mountable |
Shelf Mount |
|
Pole Mount |
|
Viewable Screen Size |
54.6 cm (21.5") |
Screen Mode |
Full HD |
Placement |
Tabletop |
Horizontal Viewing Angle |
178° |
Vertical Viewing Angle |
178° |
Backlight Technology |
LED |
Panel Technology |
Thin Film Transistor (TFT) |
Horizontal Frequency |
30 kHz to 82 kHz |
Curved Screen |
No |
Vertical Frequency |
50 Hz to 75 Hz |
Screen Size Class |
558.80 mm |
Power Description
Input Voltage |
12 V DC |
120 V AC |
|
230 V AC |
|
Operating Power Consumption |
22.50 W |
Standby Power Consumption |
690 mW |
Off-Mode Power Consumption |
320 mW |
Video
Contrast Ratio |
3,000:1 |
Brightness |
250 cd/m² |
225 cd/m² |
|
Colour Supported |
16.7 Million Colours |
Maximum Resolution |
1920 x 1080 |
Standard Refresh Rate |
75 Hz |
Native Contrast Ratio |
1,000:1 |
General Information
Product Type |
LCD Touchscreen Monitor |
Manufacturer Part Number |
E351600 |
Manufacturer Website Address |
|
Packaged Quantity |
1 |
Manufacturer |
Elo Touch Solutions, Inc |
Product Model |
2202L |
Product Name |
2202L 22" Touchscreen Monitor |
Product Series |
02 |
Brand Name |
Elo |
Physical Characteristics
Weight (Approximate) |
4.75 kg |
Height |
326.9 mm |
Width |
526.8 mm |
Depth |
42.7 mm |
Weight with Stand (Approximate) |
6.75 kg |
VESA Mount Compatible |
Yes |
VESA Mount Standard |
100 x 100 |
Height with Stand |
383.79 mm |
Width with Stand |
526.80 mm |
Depth with Stand |
193.29 mm |
Product Color |
Black |
