Description

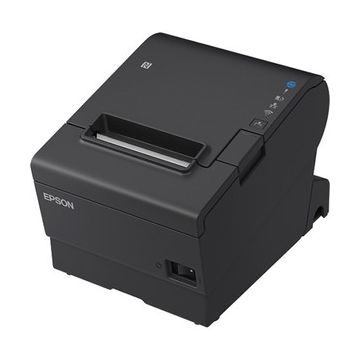

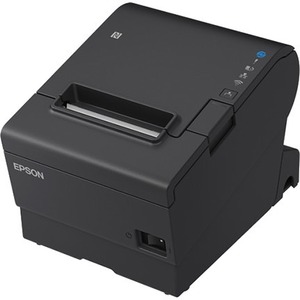

Epson TM-T88VII -612 Desktop Direct Thermal Printer - Monochrome - Receipt Print - Ethernet - USB - Yes - Serial - With Cutter - Black - 500 mm/s Mono - 180 dpi - 80 mm Label Width - ESC/POS, ePOS Emulation - For PC, Android, iOS, Mac, SPARC
Epson TM-T88VII -612 Desktop Direct Thermal Printer - Monochrome - Receipt Print - Ethernet - USB - Yes - Serial - With Cutter - Black - 500 mm/s Mono - 180 dpi - 80 mm Label Width - ESC/POS, ePOS Emulation - For PC, Android, iOS, Mac, SPARC
The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.
These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.
The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.
Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.
KEY FEATURES & BENEFITS
Ultra-fast transaction times - industry-leading print speeds up to 500 mm/sec1 and high-speed auto cutter
Reliability you can count on - 4-year warranty; easy-to-clean, water-resistant enclosure; long printhead and auto cutter life
Connect to multiple devices simultaneously - using multiple interfaces, printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers
Multi-interface support - built-in USB and Ethernet, optional serial, powered USB, parallel and wireless connectivity ensure maximum flexibility and futureproofing
Secure wireless connection - supports the latest Wi-Fi® security standard (WPA3)
Online ordering ready - Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration
POS peripheral support - supports POS peripherals including barcode scanners, customer displays, and more
Easy setup and configuration - streamline the setup and replacement processes using Epson TM Utility; vertical mounting kit provides flexible configuration options
Easy to understand - status LEDs and network diagnostic sheet improve on-site network troubleshooting
Backwards compatible - fully compatible with the existing T88V and T88VI software and same footprint
Advanced paper-saving functions - top-margin and character-height reduction features help reduce paper usage by up to 49 percent
Specifications :
Power Description
Power Source |
Power Adapter |
Fonts & Emulation
Language Emulation |
ESC/POS |
ePOS |
Network & Communication
Ethernet |
Yes |
Ethernet Technology |
Ethernet |
Technical Information
Application/Usage |
Desktop |
Barcode Symbology Supported |
GS1 DataBar Limited |
Code 39 |
|
UPC-A/E |
|
QR Code |
|
PDF417 |
|
Maxi Code |
|
GS1-128 |
|
Composite Symbology |
|
Aztec Code |
|
Codabar |
|
Code 128 |
|
Data Matrix |
|
GS1 DataBar Expanded |
|
Code 93 |
|
GS1 DataBar Omnidirectional |
|
GS1 DataBar Truncated |
|
Recommended Use |
Receipt Print |
Connectivity Technology |
Wired |
Features |
Water Resistant |
Print Head Life |
200 km |
Print Color Capability |
Monochrome |
Mean Time Between Failures (MTBF) |
41.1 Year |
Mean Cycles Between Failures (MCBF) |
70000000 |
Character Sets |
128 x 43 Graphic |
Thai |
|
18 International |
|
95 Alphanumeric |
|
Column Capacity |
80mm: 42/48/56 columns 58mm model: 30/36/40 columns |
Optional Connectivity |
Bluetooth |
Near Field Communication (NFC) |
|
Parallel |
|
Wireless LAN |
|
Fonts Included |
Font A (default): 12 x 24 Font B: 9 x 17 |
Maximum Print Resolution (dpi) |
180 |
Software
Software Included |
ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise |
Operating System Supported |
Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS) |
Cutter
Cutting Method |
Automatic |
Cutter |
Yes |
Cutter Life |
3000000 Cuts |
Interfaces/Ports
USB |
Yes |
Serial Port |
Yes |
USB Host |
Yes |
Physical Characteristics
Weight (Approximate) |
1.60 kg |
Height |
148 mm |
Width |
145 mm |
Depth |
195 mm |
Product Color |
Black |
Media Types & Handling
Media Thickness |
80 µm |
Maximum Roll Diameter |
83 mm |
Media Type |
Receipt |
Media Sensor |
Paper End Sensor |
Cover Open Sensor |
|
Paper Near End Sensor |
|
Maximum Label Width |
80 mm |
General Information
Product Type |
Direct Thermal Printer |
Manufacturer Part Number |
C31CJ57612 |
Manufacturer Website Address |
|
Manufacturer |
Epson Corporation |
Product Model |
TM-T88VII -612 |
Product Name |
TM-T88VII Single-station Thermal Receipt Printer |
Product Series |
TM-T88VII |
Brand Name |
Epson |
Miscellaneous
Package Contents |
|
Platform Supported |
SPARC |
PC |
|
Mac |
|
iOS |
|
Android |
|
Environmentally Friendly |
Yes |
Environmental Certification |
RoHS |
Noise Level |
52 dB |
