Description

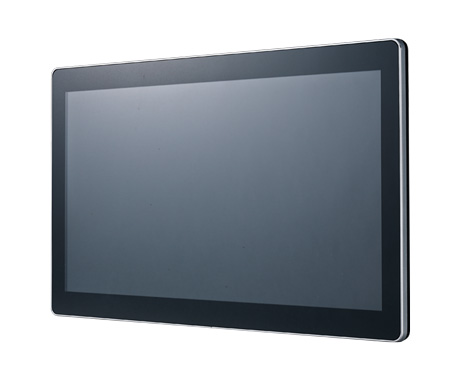

FEC proudly introduce brand new high performance 22 inch AerPPC.
PP-8642 is the world’s 1st modular All-in-One POS system with swappable panel & CPU. Equipped with Intel® H81 Chipset and selections of Intel® Celeron®, Core i3 or i5 processors.
- Intel H81 chipset (Haswell), M/B (FH-H811)
- Intel i3-4330 2.4GHz Dual Core CPU
- 22 inch LCD 500-nits with LED backlight, 50K hours, 1920x1080
- 22 inch Projective capacitive touch (Bezel free)
- RAM: 4GB standard (up to 16GB Max., 2 x 204-pin DDR3L)
- 1 x 2.5 inch SATA Drive Bay (for HDD / SSD), 1 x M.2
Ports:
- 1 x Power USB 24V on board
- 1 x RJ11 Cash Drawer (12V / 24V)
- 1 x RJ45 GigaLAN
- 1 x VGA, 1 x HDMI
- 4 x USB (2 x USB 3.0, 2 x USB 2.0)
- 1 x Serial (COM1 / RJ45 / RI / 5V / 12V)
- with Lineout
O/S:
Microsoft Windows 10 IoT
PP-8642 is the world’s 1st modular All-in-One POS system with swappable panel & CPU. Equipped with Intel® H81 Chipset and selections of Intel® Celeron®, Core i3 or i5 processors.
- Intel H81 chipset (Haswell), M/B (FH-H811)
- Intel i3-4330 2.4GHz Dual Core CPU
- 22 inch LCD 500-nits with LED backlight, 50K hours, 1920x1080
- 22 inch Projective capacitive touch (Bezel free)
- RAM: 4GB standard (up to 16GB Max., 2 x 204-pin DDR3L)
- 1 x 2.5 inch SATA Drive Bay (for HDD / SSD), 1 x M.2
Ports:
- 1 x Power USB 24V on board
- 1 x RJ11 Cash Drawer (12V / 24V)
- 1 x RJ45 GigaLAN
- 1 x VGA, 1 x HDMI
- 4 x USB (2 x USB 3.0, 2 x USB 2.0)
- 1 x Serial (COM1 / RJ45 / RI / 5V / 12V)
- with Lineout
O/S:
Microsoft Windows 10 IoT
