Description

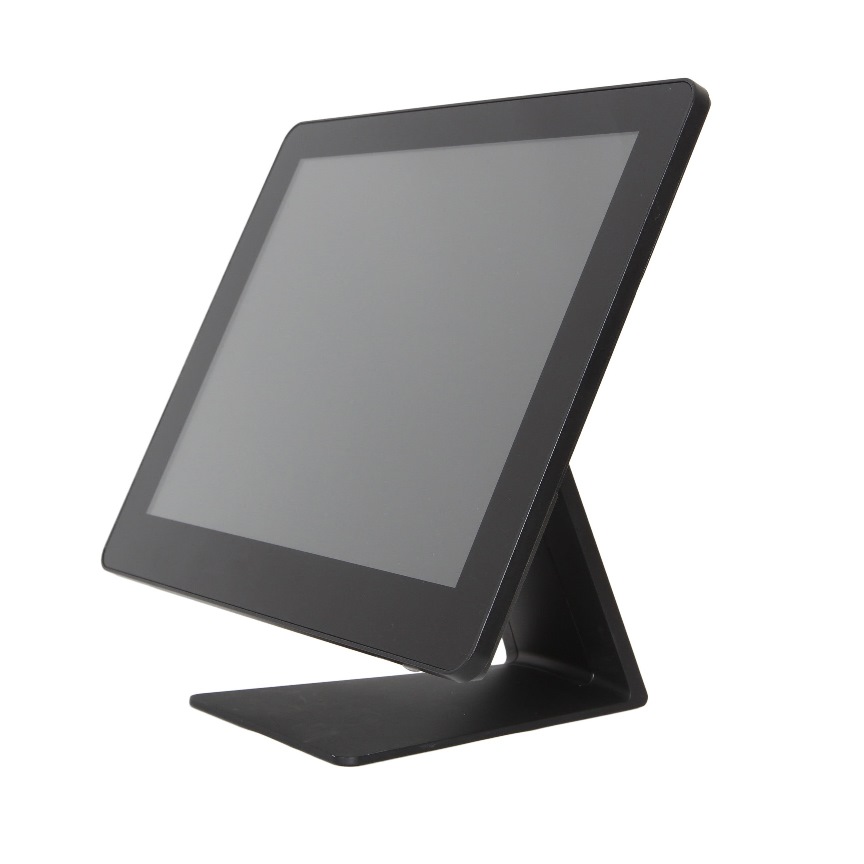

Fan-less All in one Panel PC: Featuring Intel Celeron J1900 quad-core CPU, the fan-less 15’’ PP1635C is a perfect POS solution. With its small footprint, it also creates more space for work efficiency.
True flat Projected Capacitive touch: Featuring elegant and graceful bezel-free design. The sensitivity of P-CAP touch fulfils customers’ demands based on different user scenarios.
Aluminium Die-casting housing: It is not only robust and durable but also provides a great solution for heat dissipation for CPU, RAM, and storage.
Ultra Slim: The total thickness of PP-1635C is from 27.9 to 41.7mm. It is not only slim but also with strong and durable aluminium design to maximize your working space.
Easy Swap Storage: Loose one single screw then you will be able to access the storage for easy maintenance.
Cable Management: To avoid messy cabling in working area, we offer a solution that cables can be hidden within the back cover of the stand to make working area always clean and tidy.
- Intel BayTrail D Celeron Quad-core J1900 CPU (2M cache, up to 2.42 GHz)
- RAM: 4GB 204-pin DDR3/L
- 15 inch LCD 350-nits with LED backlight, 30K hours, 1024x768
- 15 inch Projective capacitive touch 10-points touch (Bezel free)
- 1 x 128GB 2.5 inch SATA SSD
Ports:
- 1 x 12V DC in (Hosiden 4 pin)
- 1 x 12V DC out (DC jack)
- 1 x Cash Drawer Port (12V only)
- 1 x Giga LAN (RJ-45)
- 1 x VGA (5V default, 12V optional. Selectable in BIOS)
- 5 x USB (USB 2.0 x 4, USB 3.0 x 1)
- 4 x COM (RJ45 x 2, DB9 x 2)
- External power adapter 60W
- Housing color: Black
- Aluminum Die-casting
- Windows 10 IOT Enterprise LTSC 2019 Entry (64 bit)
- 24 month return to base warranty
True flat Projected Capacitive touch: Featuring elegant and graceful bezel-free design. The sensitivity of P-CAP touch fulfils customers’ demands based on different user scenarios.
Aluminium Die-casting housing: It is not only robust and durable but also provides a great solution for heat dissipation for CPU, RAM, and storage.
Ultra Slim: The total thickness of PP-1635C is from 27.9 to 41.7mm. It is not only slim but also with strong and durable aluminium design to maximize your working space.
Easy Swap Storage: Loose one single screw then you will be able to access the storage for easy maintenance.
Cable Management: To avoid messy cabling in working area, we offer a solution that cables can be hidden within the back cover of the stand to make working area always clean and tidy.
- Intel BayTrail D Celeron Quad-core J1900 CPU (2M cache, up to 2.42 GHz)
- RAM: 4GB 204-pin DDR3/L
- 15 inch LCD 350-nits with LED backlight, 30K hours, 1024x768
- 15 inch Projective capacitive touch 10-points touch (Bezel free)
- 1 x 128GB 2.5 inch SATA SSD
Ports:
- 1 x 12V DC in (Hosiden 4 pin)
- 1 x 12V DC out (DC jack)
- 1 x Cash Drawer Port (12V only)
- 1 x Giga LAN (RJ-45)
- 1 x VGA (5V default, 12V optional. Selectable in BIOS)
- 5 x USB (USB 2.0 x 4, USB 3.0 x 1)
- 4 x COM (RJ45 x 2, DB9 x 2)
- External power adapter 60W
- Housing color: Black
- Aluminum Die-casting
- Windows 10 IOT Enterprise LTSC 2019 Entry (64 bit)
- 24 month return to base warranty
