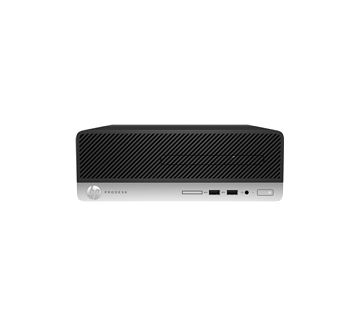

HP 400 G4 SFF i7-7700 8GB(DDR4-2400) 1TB(SATA-7.2)

Supported Operating Systems

Operating system

Windows 10 Pro 64

Drives

Internal Storage

1 TB 7200 rpm SATA

Optical drive

Slim DVD-Writer

Internal drive bays

One 9 mm slim ODD
Secure digital (SD) 3 reader
One 2.5" HDD or one 3.5" HDD

Drive bays footnote number

[21]

Graphic Subsystem

Graphics

Intel® HD Graphics 630

Graphics

Integrated

Multimedia and Input Devices

Audio

Conexant CX20632 codec, 2 W internal speaker, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable

Multimedia and Input Devices

Keyboard

HP USB Business Slim Keyboard

Pointing device

HP USB Optical Mouse

Connectivity and Communications

Network interface

Integrated Realtek RTL8111G GbE

Ports

1 headset connector
2 USB 3.1 Gen 1

Expansion slots

Turbo Drive (M.2 PCIe)
1 M.2 2230 for wireless NIC
PCI Express x16 (v3.0)(wired as a x4) 2.5" low profile, 6.6" length, 35 W max power
PCI Express x16 (v3.0) 2.5" low profile, 6.6" length, 35 W max power

Network interface type

LAN

I/O Port location

Front

Ports

1 VGA
4 USB 2.0
2 USB 3.1 Gen 1
1 audio-out
1 DisplayPort™
1 audio-in
1 power connector
1 RJ-45

I/O Port location

Back

Expansion slots footnote number

[23]

Battery and Power

Power

80 PLUS Bronze: 180 W, up to 85% efficient, active PFC

Weights

Weight

4.6 kg

System Components

Form factor

Small form factor

Security Management

Security management

Trusted Platform Module TPM 2.0 Embedded Security Chip (SLB9670 - Common Criteria EAL4+ Certified)
SATA 0,1 port disablement (via BIOS)
Drive lock
Serial, USB enable/disable (via BIOS)
Power-on password (via BIOS)
Setup password (via BIOS)
Solenoid hood lock/intrusion sensor
Support for chassis padlocks and cable lock devices

Software and Applications

Management features

HP Client Catalog
LANDESK Management
HP SoftPaq Download Manager (SDM)
HP System Software Manager (SSM)
HP BIOS Config Utility (BCU)
HP MIK for Microsoft SCCM

Manageability features footnote number

[15, 22]

Dimensions

Dimensions (W x D x H)

9.5 x 29.6 x 27 cm

Processor

Chipset

Intel® H270

Processor family

7th Generation Intel® Core™ i7 processor

Processor

Intel® Core™ i7-7700 with Intel® HD Graphics 630 (3.6 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)

Processor note

Your product does not support Windows 8 or Windows 7. In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7 drivers on http://www.support.hp.com.

Memory

Memory

8 GB DDR4-2400 SDRAM (1 x 8 GB)

Memory Slots

2 DIMM

Standard memory note

Transfer rates up to 2400 MT/s.

Memory and storage

8 GB memory
1 TB HDD storage

Warranty

Warranty

1 year (1-1-1) limited warranty and service offering includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply
