Description
FEATURES

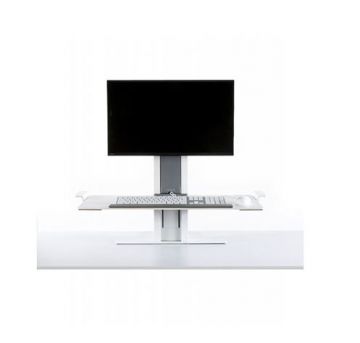

• Adaptable to any fixed-height work surface
• Adjustable keyboard platform enables user to raise or lower work surface to desired height
• Provides ultimate stability while typing
• Available in single and dual monitor configurations and can support monitors up to 13.6kg (30lbs)
• Fully integrated cable management system
• Delivered with easy-to-install, pre-lengthened cables that are designed for durability and regular movement
SPECIFICATIONS
• Two USB 2.0 outlets for keyboard/mouse
• 460mm (18”) of height adjustment plus an additional 5”(127 mm) of single/dual monitor display adjustment
• Cable harnesses are offered with four technology platforms: VGA, HDMI, DisplayPort, and DVI-D
• Available in three mount options:
Freestanding base Small worksurface: Width 28” (712mm), Depth 17.5” (445mm) Large work surface: Width 28” (712mm) Depth 28.5” (724mm)
Clamp Can be adjusted to fit desks with a depth of 610 - 762 mm (24–30”) and a thickness of 70mm (2.75”)
Bolt-through Grommet
• Total product weight:
Freestanding base: 34kg (75 lbs.)
Other bases: 25.4 - 26.3 kg (56–58 lbs.)
• QuickStand can hold the following weights*:
- Heavy mount (single monitor): 13.6kg (30 lbs.)
- Light mount (single monitor): 5kg (11 lbs.)
- Heavy mount with crossbar (for two monitors): 13.6kg (30 lbs.)
• 5 year, 24/7 warranty
CONFIGURATION DETAILS
QS Quickstand
W - White
L - Light Monitor (Single screen up to 5kg/11lbs).
30 - Large platform
D - Dual Mount (CM+GM Mount)
D - DVI-D Set (1 x DVI-D, 1 x Power, 2 x USB)
N - No Cables
SUSTAINABILITY
Humanscale products are designed with a constant and genuine focus on their environmental impact at every stage of their development. For us, the best designs in the world achieve more with less, and sustainability is the natural result of this focus. QuickStand, like many of our products, is built with highly recyclable aluminium parts.
• Adaptable to any fixed-height work surface
• Adjustable keyboard platform enables user to raise or lower work surface to desired height
• Provides ultimate stability while typing
• Available in single and dual monitor configurations and can support monitors up to 13.6kg (30lbs)
• Fully integrated cable management system
• Delivered with easy-to-install, pre-lengthened cables that are designed for durability and regular movement
SPECIFICATIONS
• Two USB 2.0 outlets for keyboard/mouse
• 460mm (18”) of height adjustment plus an additional 5”(127 mm) of single/dual monitor display adjustment
• Cable harnesses are offered with four technology platforms: VGA, HDMI, DisplayPort, and DVI-D
• Available in three mount options:
Freestanding base Small worksurface: Width 28” (712mm), Depth 17.5” (445mm) Large work surface: Width 28” (712mm) Depth 28.5” (724mm)
Clamp Can be adjusted to fit desks with a depth of 610 - 762 mm (24–30”) and a thickness of 70mm (2.75”)
Bolt-through Grommet
• Total product weight:
Freestanding base: 34kg (75 lbs.)
Other bases: 25.4 - 26.3 kg (56–58 lbs.)
• QuickStand can hold the following weights*:
- Heavy mount (single monitor): 13.6kg (30 lbs.)
- Light mount (single monitor): 5kg (11 lbs.)
- Heavy mount with crossbar (for two monitors): 13.6kg (30 lbs.)
• 5 year, 24/7 warranty
CONFIGURATION DETAILS
QS Quickstand
W - White
L - Light Monitor (Single screen up to 5kg/11lbs).
30 - Large platform
D - Dual Mount (CM+GM Mount)
D - DVI-D Set (1 x DVI-D, 1 x Power, 2 x USB)
N - No Cables
SUSTAINABILITY
Humanscale products are designed with a constant and genuine focus on their environmental impact at every stage of their development. For us, the best designs in the world achieve more with less, and sustainability is the natural result of this focus. QuickStand, like many of our products, is built with highly recyclable aluminium parts.
