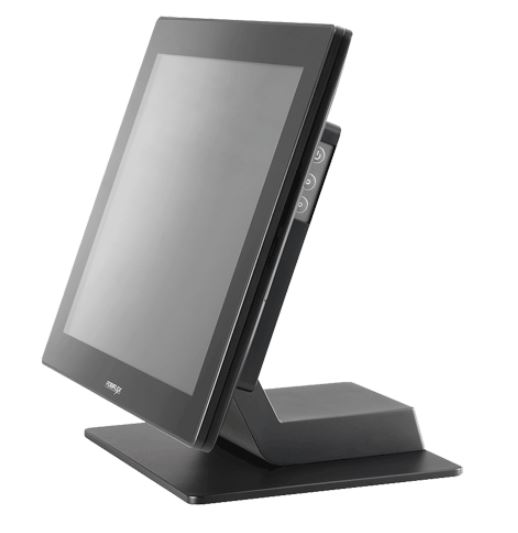

POSIFLEX RT-2015 J1900 4GB 128 GB SSD NO OS TOUCH SYSTEM

POSIFLEX RT-2015 J1900 4GB 128 GB SSD no OS

RT-2015 15" Super slim fanfree bezelfree PCAP touch terminal, Intel Bay Trail Celeron up to 2.42G J1900 Quad core, 2M cache, 4GB DDR3L, 128GB SSD, 3 x serial, 1 x USB3.0, 3 x USB2.0, 1 x LAN, 1 x VGA, 1 x Mini DP, no OS

Features :

• Slimline 15" Fanless Touch POS Terminal
• Projective Capacitive Touch screen (PCAP)
• 15" LCD 1024 x 768 resolution
• Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
• Fan-free design boasting quiet and anti-dust features
• Clean Cable management
• Aluminium die-cast main housing design for efficient cooling
• Can be shipped with 10" LCD Customer display mounted
• Optional USB or Powered USB expansion module in base

Specifications :

CPU : Intel® Bay Trail Quad Core Celeron™ J1900 / 2.0 GHz ~ 2.42 GHz

Memory : DDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB

Storage device(s) : In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
2nd SATA Slot available

Display : 15" TFT LED Backlit LCD Display

Resolution : 1024 x 768

Tilt Angle : 15° to 90°

Touch Panel : Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch

I/O Ports : 3 x RS-232 Ports (1 x DB9, 2 x 10 pin RJ50) with 5V/12V Support
4 x USB Ports (1 x USB3.0/2.0 3 x USB2.0)
Optional USB expansion module to bring total to 7 USB Ports (in base, uses USB3.0)
or Optional PoweredUSB expansion module 1x12V & 1 x 24V USB Ports (in base, uses USB3.0)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x mini DP port
1 x Mini-PCIe slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)

Audio : internal 1 x 2W Speaker

OS Support : Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / WIN10 IoT / Linux per request

Environmental Sealing : IP65 to front screen

Operating Environment : 0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD

Storage Environment : -20 ~ +70 °C, 10 ~ 90% RH

Power Supply : 12V DC Power Adapter (60W)
(Optional 80W when using with 2nd Display)
(Optional 150W when equiped with Powered USB module)

External Dimensions (WxDxH) : 368mm x 207mm x 325mm

Weight : 5.4 Kg
