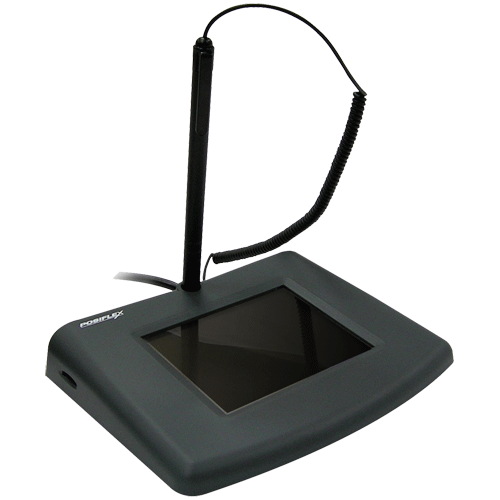

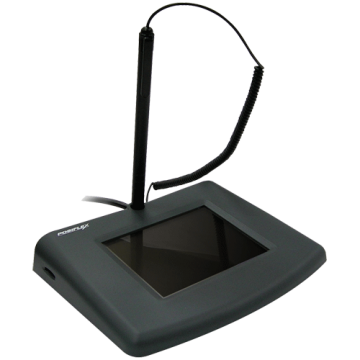

POSIFLEX SP-1200 Signature Capture Pad USB I/F

$519.00
(Inc GST)
For Special & Volume Pricing - Call 1300 590 094
SP-1200-B-GD
+ −

Description

Posiflex SP-1200 Signature Capture Pad USB I/F for retail application

Features:

  • Signature Capture Pad
  • ITO resistive touch pad over 3.8" FSTN LCD
  • Display area 3" (Width) x 2.3" (Height) with resolution 320 x 240
  • Adjustable LCD backlight contrast
  • Touch Resolution 500dpi and Data Conversion Rate 540 pps
  • Low power consumption
  • Provides smooth bitmap and resolution for signature verification
  • Simultaneous view of electronic signature on LCD pad

Specifications:

Display
3.8" FSTN LED Backlit LCD Panel with LED Backlight
Resolution
320 x 240
Signature Area
58.6 mm (H) x 76.7 mm (V)
Touch Resolution
500 dpi
Touch Panel
ITO Resisitive transparent touch pad
Actuator
Tethered (spring coil) Stylus
Interfaces
USB - Ver. 1.1 (compatible to USB 2.0)
Output format
BMP
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7
Software Utilities
VB & Visual C++ SDK
Operating Environment
0 ~ +45 °C, 20 ~ 85% RH non-condensing
Storage Environment
-20 ~ +60 °C, 85% RH non-condensing
Power Supply
5V DC from USB Port
Power Consumption
max. 70 mA
External Dimensions (WxDxH)
150mm x 122mm x 26mm
Weight
0.37 Kg
EMC/Safety Standards
FCC Class A, CE, C-tick
