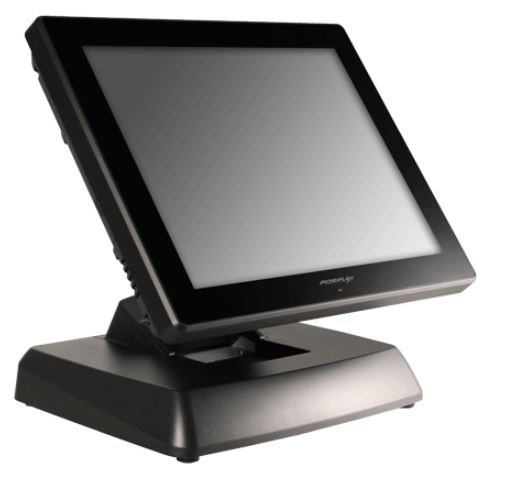

POSIFLEX XT3815 J1900 Q Core 4G 240G SSD PCAP WIN7P 64 TOUCH SYSTEM

POSIFLEX XT3815 J1900 Q Core 4G 240G SSD PCAP WIN7P 64

15" fanfree bezelfree PCAP touch terminal, Intel J1900 Quad core up to 2.42Ghz, 2M cache, 4GB DDR3L, 240GB SSD or Higher, 4 x serial, 7 x USB, 1 x mini PCIe slot, Gen. 7e base, IP44 Upgrade, IP44 Upgrade, WIN 7 64 Bit PreLoaded

Features :

• PC POS Touch System
• Projective Capacitive Touch screen (PCAP)
• 15" LCD 1024 x 768 resolution
• Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
• Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
• Fan-free design boasting quiet and anti-dust features
• Aluminium die-cast housing design for efficient cooling
• RAID 1 (Disk Mirroring) support to backup important data (Optional)
• Push-open cover to protect power switch from accidental shutdown
• New Gen 7 Slim line Base (Patent pending)
• Optional Gen 8 slim base, which can have build in Power supply and Powered USB Modules

Specifications :

CPU : Intel® Bay Trail Quad Core Celeron™ J1900 / 2.0 GHz ~ 2.42 GHz

Memory : DDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB

Storage device(s) : In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives

Display : 15" TFT LED Backlit LCD Display

Resolution : 1024 x 768

Tilt Angle : 15° to 90°

Touch Panel : Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch

I/O Ports : 4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
6 x USB Ports (1 x USB3.0/2.0 6 x USB2.0)
Optional Powered USB Ports 1 x 24V & 3 x 12V on GEN 8 Base
1 x Proprietary USB port for side mount optional devices
1 x Parallel Port through service window (Optional Proprietary Cable)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Mini-PCIe slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)

Audio : 2W Speaker

OS Support : Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / Linux per request

Environmental Sealing : N/A

Operating Environment : 0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD

Storage Environment : -20 ~ +70 °C, 10 ~ 90% RH

Power Supply : 12V DC Power Adapter (60W)
(Optional 80W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)

External Dimensions (WxDxH) : 372mm x 320mm x 252.7mm

Weight : 5.6 Kg
