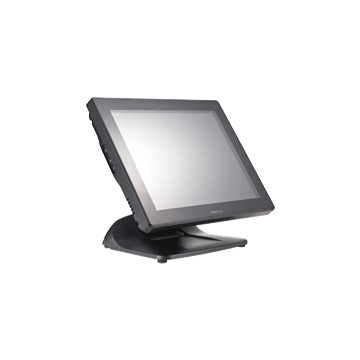

POSIFLEX XT5315 with CEL2.7GHz CPU 8GB 120GB SSD WIN10IoT

POSIFLEX XT5315 with CEL2.7GHz CPU 8GB 120GB SSD WIN10IoT

XT-5315 15" Bezelfree LCD touch (PCAP) terminal(1024x768) with Intel Haswell Celeron-2.7GHz(2M Cache), 8GB DDR3, 128GB SSD, with 7th GEN Base, WIN IoT 64 bit Preloaded

Specifications

CPU

Intel G1820 - 2.7GHz. 2M Cache
Can also be purchased with i3

Memory

DDR3 1333 MHz, SO-DIMM socket x 2, max 16 GB, default 4 GB

Storage device(s)

In Australia Standard with 64 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives

Display

15" TFT LCD Display

Resolution

1024 x 768

Tilt Angle

15° to 90°

Touch Panel

Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch

I/O Ports

6 x RS-232 Ports (2 x DB9, 2 x RJ50 on I.O plate)pin header x 2 from service window, with 5V/12V Support
6 x Standard USB Ports
2 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x mini-PCIe slot internal expansion slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional 1 x Parallel port with Proprietory cable
Optional powered USB Ports 1 x 24V and 3 x 12V via GEN8e Base

Audio

2W Speaker internal x 1 + Line Out

OS Support

Windows 7 / POSReady 7 / Linux per request

Environmental Sealing

N/A

Operating Environment

0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD

Storage Environment

-20 ~ +70 °C, 10 ~ 90% RH

Power Supply

12V DC Power Adapter
(Optional 120W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)

External Dimensions (WxDxH)

372mm x 320mm x 252.7mm

Weight

5.86 Kg
