SAM4S SAP-6600 Android 2G 16G SSD A 6 Wifi Bt TOUCH SYSTEM

SAM4S SAP-6600 Android Tch Syst 2G 16G SSD A 6 Wifi Bt

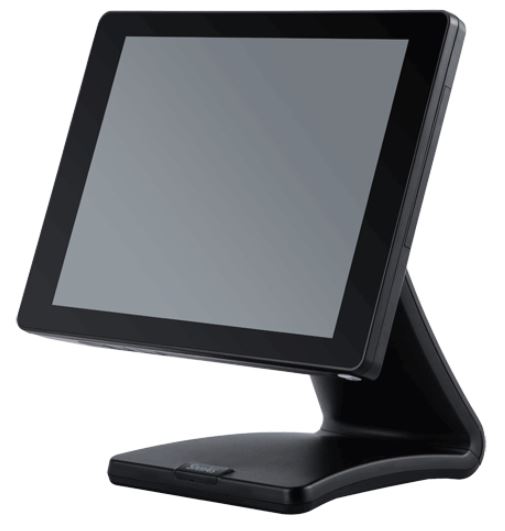

SAP-6600 15" Fanless Touch System, Intel Celeron N3160 Quad Core 2.24 GHz, PCAP Touch, 2 GB DDRIII, 16 GB M.2 SSD, 3 x RS232, 6 x USB, 1 x Ethernet, 1 x VGA, 1 Drawer port 12V/24V Selectable, WIFI & BT, Android 6.0

Features :

• Android 6.0 POS Touch Terminal
• Low energy consumption
• High resolution 15" LED LCD
• LCD Resolution 1024 x 768 (XGA)
• Powerful performance with INTEL N3160 Quad core CPU
• Silent Fan Free system for high reliability
• 16 GB Mass Storage Capacity
• Tool-less access for easy maintenance
• Multiple Interfaces for a full range of optional peripherals
• Optional 2 Line Customer Display or 7" Customer LCD Display, 3 Track MSR

Specifications :

CPU : Intel Celeron N3160 Quad core up to 2.24 GHz

Memory : DDRIII One slot. 2GB standard expandable to 8GB DDRIII

Storage device(s) : 16 GB SSD Standard in Australia & New Zealand

Display : 15" LED Backlight LCD Display

Resolution : 1024 x 768

Tilt Angle : N/A

Touch Panel : True Flat PCAP Touch (Standard in Australia & New Zealand)
Optional; 5 Wire Resistive touch (Special Order, MOQ Applies)
USB I/F

I/O Ports : 3 x RS-232 Ports (2 x DB9, 1 x RJ45) with 5V/12V BIOS selectable
6 x Standard USB Ports (4 x USB 3.0 on Bottom, 2 x USB 2.0 on the side)
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x VGA Port for 2nd Display + 12V power outlet
1 x Parallel port (Factory Option)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
3 x Audio Ports (Line in & Line out/ Mic in)
Wifi & Bluetooth Built-in (Standard in Australia & New Zealand)

Audio : N/A

OS Support : Android 6.0 (Marshmallow)

Environmental Sealing : IP55 to Front

Operating Environment : 0 ~ +40 °C, 20 ~ 85% RH with SSD

Storage Environment : -20 ~ +60 °C, 10 ~ 85% RH

Power Supply : DC 12V/5A

External Dimensions (WxDxH) : 380mm x 380mm x 380mm

Weight : 5.9 Kg
