Description

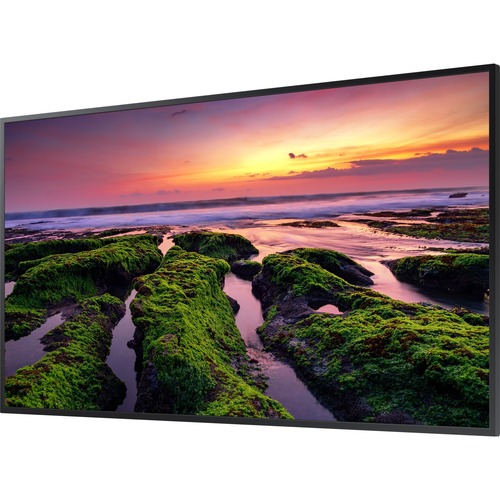

Samsung QB43B 43" LCD Digital Signage Display - ARM Cortex A72 1.70 GHz - 3840 x 2160 - 350 cd/m² - 2160p - USB - HDMI - DVI - Serial - Wireless LAN - Bluetooth - Ethernet - Tizen 6.5
Unlock display possibilities for your business
The QBB Series combines enhanced professional features, streamlined set up and maintenance, and stunning design to elevate almost any business environment. From collaboration to showcasing rich content in new formats, QBB delivers innovation and efficiency to help businesses reach their goals.
Life-like colour expression | Dynamic Crystal Colour
The QBB series features Dynamic Crystal Display, using 10 bit processing for vivid colour expression, allowing viewers to enjoy a wide spectrum of colours.
View incredible shades of colour in powerful 4K | Quantum Processor 4K
Intelligent UHD upscaling technology, made possible by Samsung's Crystal Processor 4K, enables content developed at a lower resolution to be elevated to UHD-level quality.* It also performs edge restoration and noise reduction to help optimise on-screen text and imagery
Maximise your space | Slim and symmetrical design
The QBB series features a symmetrical design, which helps to simplify wall mounting and makes installation simple. To maximise space savings, all terminals run parallel with the wall, ensuring the cables do not impeed the installation and allows the display to hang flush against any wall.
Minimal clutter design | Clean cable management
Tuck away messy cables from view with the new cable guide feature. This allows for a clean, sophisticated, and visually-appealing experience for customers, even when the back of the display is visible.
Specifications :
Miscellaneous
|
Environmentally Friendly |
Yes |
Software
|
Operating System |
Tizen 6.5 |
Power Description
|
Input Voltage |
230 V AC |
|
120 V AC |
Network & Communication
|
Bluetooth |
Yes |
|
Ethernet |
Yes |
|
Wireless LAN |
Yes |
Processor & Chipset
|
Processor Speed |
1.70 GHz |
|
Processor Type |
Cortex A72 |
|
Processor Core |
Quad-core (4 Core) |
|
Processor Manufacturer |
ARM |
Technical Information
|
Bezel Width (Bottom) |
11.20 mm |
|
Bezel Width (Top) |
9.20 mm |
|
Bezel Width (Left) |
9.20 mm |
|
Bezel Width (Right) |
9.20 mm |
Display & Graphics
|
Pixel Pitch |
0.25 mm |
|
Display Resolution |
3840 x 2160 |
|
Screen Size |
43" |
|
Number of Screens |
1 |
|
Display Screen Type |
LCD |
Physical Characteristics
|
Weight (Approximate) |
10 kg |
|
Mount Type |
Wall Mountable |
|
Height |
55.8 cm |
|
Width |
96.8 cm |
|
Depth |
4.8 cm |
|
VESA Mount Standard |
200 x 200 |
Video
|
Brightness |
350 cd/m² |
|
Color Depth |
10-bit |
|
Scan Format |
2160p |
|
Dynamic Contrast Ratio |
4,000:1 |
|
Color Gamut |
92% DCI-P3 |
|
92% CIE 1976 |
Interfaces/Ports
|
USB |
Yes |
|
HDMI |
Yes |
|
DVI |
Yes |
|
DisplayPort |
No |
|
Number of HDMI Inputs |
3 |
|
Number of USB 2.0 Ports |
2 |
|
Serial |
Yes |
General Information
|
Product Type |
Digital Signage Display |
|
Manufacturer Part Number |
LH43QBBEBGCXXY |
|
Manufacturer Website Address |
|
|
Manufacturer |
Samsung |
|
Product Model |
QB43B |
|
Product Name |
43" QBB Professional Display |
|
Product Series |
QBB |
|
Brand Name |
Samsung |
