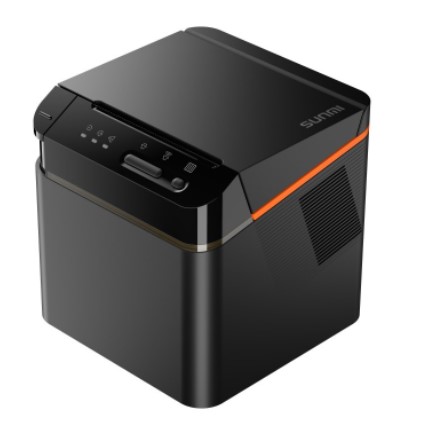

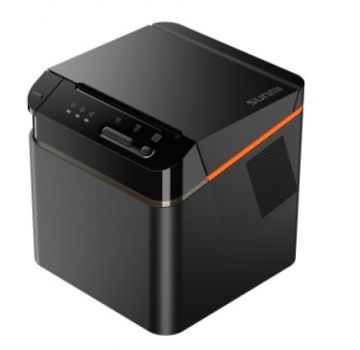

Sunmi NT311 USB/ETH/BT/WIFI Printer

SUNMI NT-311 80mm Kitchen Cloud Printer is equipped with multiple communication interfaces, for multi-channel printing via Bluetooth, LAN, Wi-Fi,4G (optional) or USB. One printer for all your needs. SUNMI 80mm Kitchen Cloud Printer saves you time and money.

Sunmi 80mm Kitchen Cloud Printer

Specifications :

Printer
Printing Method: Thermal
Paper Width: 80mm
Dots: 576 dots
Effective Print Width:
72mm
Print Life: 150km
Print Speed: Max. 250mm/s

Cutter
Paper Thickness supported:
0.048 ~ 0.08mm
Cutter Life：>1.5 Million times

Printing Paper
Paper Type: Thermal paper
Paper Width :80mm
Paper Thickness:
0.008 ~ 0.075mm
Paper Roll Outer Diameter:
80mm
Till Roll Loading Method:
Top cover for easy loading

Storage
Memory: 64MB
Flash: 256MB

Character Set
Font Library:
Unicode character set
Chinese:
GB18030 24×24dots
Numbering:
ASCⅡ 12×24dots
User Defined Character Set:
Supported

Sensor
Out of Paper Sensor:
Optical detection
Open cover Sensor:
Mechanical detection
Paper Jam Sensor:
Optical detection
Paper Pick-Up Sensor:
Optical detection
Black Mark Sensor:
Optical detection
Temperature Sens

Indicator Lights
Power Indicator: Green
Network Indicator: Blue
User Reminder Indicator:
White
Error indicator: Red

Buttons
Volume: 2* volume +/-
Function: 2* function buttons
Pairing: 1* Pairing

Ethernet
Port: RJ45
Speed: 10/100Mbps

Wi-Fi
Protocol Supported:
IEEE 802.11 b/g/n
Frequency Band: 2.4GHz

Bluetooth
Protocol Supported:
BLE, SPP, IBEACON
Frequency Band: 2.4GHz

4G (optional)
China
• FDD LTE: B1/B3/B5/B8
• TDD LTE: B38/B39/B40/B41
• UMTS:B1/B8
• TDSCDMA: B34/B39
• GSM: 900/1800 MHz
Europe
• FDD LTE: B1/B3/B7/B8/B20
• TDD LTE: B38/B39/B40/B41
• UMTS:B1/B8
• TDSCDMA: B34/B39
• GSM: 900/1800 MHz
USA
•FDD LTE: B2/B4/B5/B13/B17
•UMTS: B2/B5

Speaker
Power: 3W
Volume：≥105dB

Power Input
Working Voltage:
DC 24V/2.5A
Port: DIN 4P

Dimensions
130mm(L)×130mm(W)×
130mm(H)

Protection Level
IP52;
insect-/water-proof,
easy to clean (oil)

Weight
855g (without paper)

Software Supported
Print Protocol:
ESC/POS Instruction set
Cloud Communication:
MQTT+HTTPS

Supported to Android only (not with iPad)
