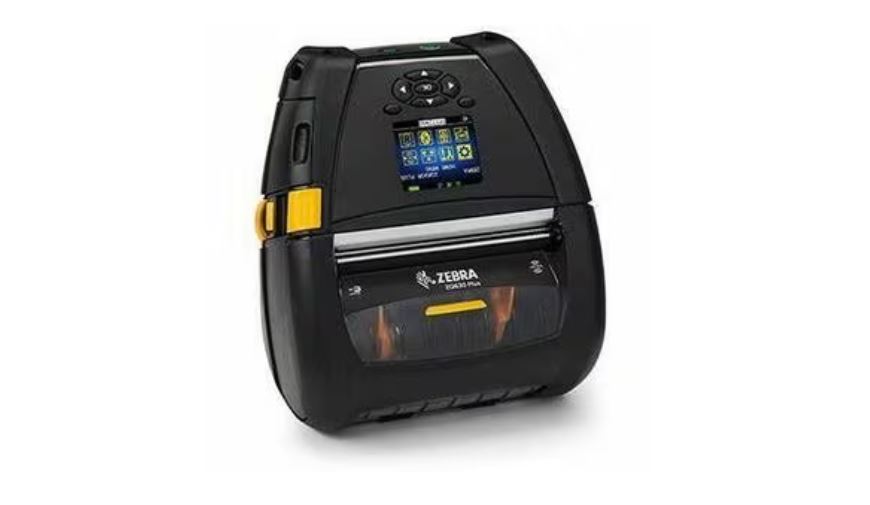

ZEBRA ZQ630 Plus; English, Trad Chinese, Korean fonts, Wi-Fi 6 Dual Radio 802.11AX / BT5.x DT Printer

Premium mobile printing and RFID capabilities for maximum productivity

Always on the edge of innovation, Zebra offers premium RFID mobile printers to give your workers a leading advantage. The ZQ630 Plus RFID rounds out Zebra's ZQ600 Plus Series printers with advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity-6600 mAh-power every minute of the longest shift. The instant wake-up feature on Wi-Fi™ or Bluetooth® ensures the ZQ630 Plus RFID never sleeps on the job. And, the ZQ630 Plus RFID is easier to integrate, manage, setup and secure, thanks to Zebra's Link-OS® printer operating system and powerful Print DNA™ suite of applications, utilities and developer tools.

Premium Features for Maximum Productivity | RFID + Mobility Made Easy

Leading the industry in RFID mobility, Zebra was the first to introduce RFID mobile printers in the market.. The innovative ZQ630 Plus RFID printer gives your workers the flexibility to print and encode RFID labels with ease. Compatible with all current Zebra RFID technology, including tags and encoding schemes, it's easy to extend RFID to a mobile printer.

RFID setup is simple with automatic calibration features that eliminate complex RFID placement guidelines. Insert the RFID media into the ZQ630 Plus and RFID calibrate only once-no need to recalibrate with same-type media changes.

The Industry's First Wi-Fi 6 Mobile Printer

anced roaming. For flexibility, choose between 802.11ax/Bluetooth 5.3 or 802.11ac/Bluetooth 4.2 dual radio options, depending on your network environment.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Business Tough-Built for All-Day Every Day Enterprise Use

While the ZQ630 Plus RFID is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

Superior Battery Power and Power Management | Do More on a Single Charge

With the ZQ630 Plus RFID's high-capacity battery, you can be sure that every worker has plenty of power for every shift

Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power.

Extraordinary Battery Management Capabilities

The ZQ630 Plus RFID's PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity.

• Apple® iOS, Android™ and Windows® Mobile connectivity
• Direct thermal printing of barcodes, text and graphics
• CPCL, EPL™ and ZPL® programming languages
• 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
• 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
• Built-in battery charger
• Belt clip for unobtrusive and convenient printing
• Black mark sensing using fixed center position sensors
• Easy-to-use peel and present mode
• Label present sensor for issuing labels one at a time
• Tear bar for easy media dispensing
• Center-loading media locking for variable roll widths
• "Clamshell" design for easy media loading

Specifications :

Display Screen	Yes
USB Host	Yes
Power Source	Battery
Operating System Supported	Link-OS
Flash Memory	512 MB
Standard Memory	256 MB
Battery Chemistry	Lithium Ion (Li-Ion)
Battery Capacity	6800 mAh
Battery Included	Yes
Weight (Approximate)	1.10 kg
Height	82.6 mm
Width	165.1 mm
Depth	186.7 mm
Language Emulation	CPCL
	EPL
	ZPL
	ZBI 2.0
	XML
Platform Supported	PC
	iOS
	Android
Energy Star	Yes
Power Cable Localization	India
Bluetooth	Yes
Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11ac
Ethernet Technology	Fast Ethernet
Near Field Communication (NFC)	Yes
Product Type	Direct Thermal Printer
Manufacturer Part Number	ZQ63AAXAA0400
Manufacturer Website Address	http://www.zebra.com/ap/en.html
Manufacturer	Zebra Technologies Corporation
Product Model	ZQ630 Plus
Product Name	ZQ630 Plus RFID Mobile Printer
Product Series	ZQ600
Brand Name	Zebra
Media Thickness	190.5 µm
Maximum Roll Diameter	66.04 mm
Media Type	Receipt
	Gap
	Tag
	Black Mark
	Die-cut Label
	Label
	Linered Media
	Black Bar
Media Sensor	Gap Sensor
	Label Present Sensor
Black Mark Sensor
Maximum Label Width	111.76 mm
Maximum Label Length	812.80 mm
Application/Usage	Desktop
	Healthcare
	Industrial
	Warehouse
	Mobile
	Retail
	Transportation & Logistic
	Manufacturing
Barcode Symbology Supported	Codabar (NW-7)
	POSTNET
	QR Code
	TLC 39
	UCC/EAN 128
	UPC E with 2 and 5 add on
	PDF417
	UPC-A
	2 and 5 Digits Add-on
	AZTEC
	Code 128
	Code 39
	Code 93
	Data Matrix
	EAN-13
	EAN-8
	FIM
	GS1 DataBar
	Interleaved 2 of 5
	Maxi Code
	Micro PDF-417
	MSI PLESSEY
Maximum Print Width	104 mm (4.09")
Recommended Use	Label/Receipt Print
Connectivity Technology	Wireless
Features	Water Resistant
	Shoulder Strap
	Belt Clip
	Dust Resistant
Mobile Device Printing	Yes
Print Color Capability	Monochrome
Maximum Print Length	813 mm
Character Sets	Universal Font Scaling Technology (UFST)
	Agfa Monotype
Ingress Protection (IP) Rating	IP54
Maximum Print Resolution (dpi)	203
